Single-Story Flue Kit | Through-the-Roof Installation |
Black Flues | Ø130mm
Complete 4m flue kit for a single-story home and closed combustion fireplace.

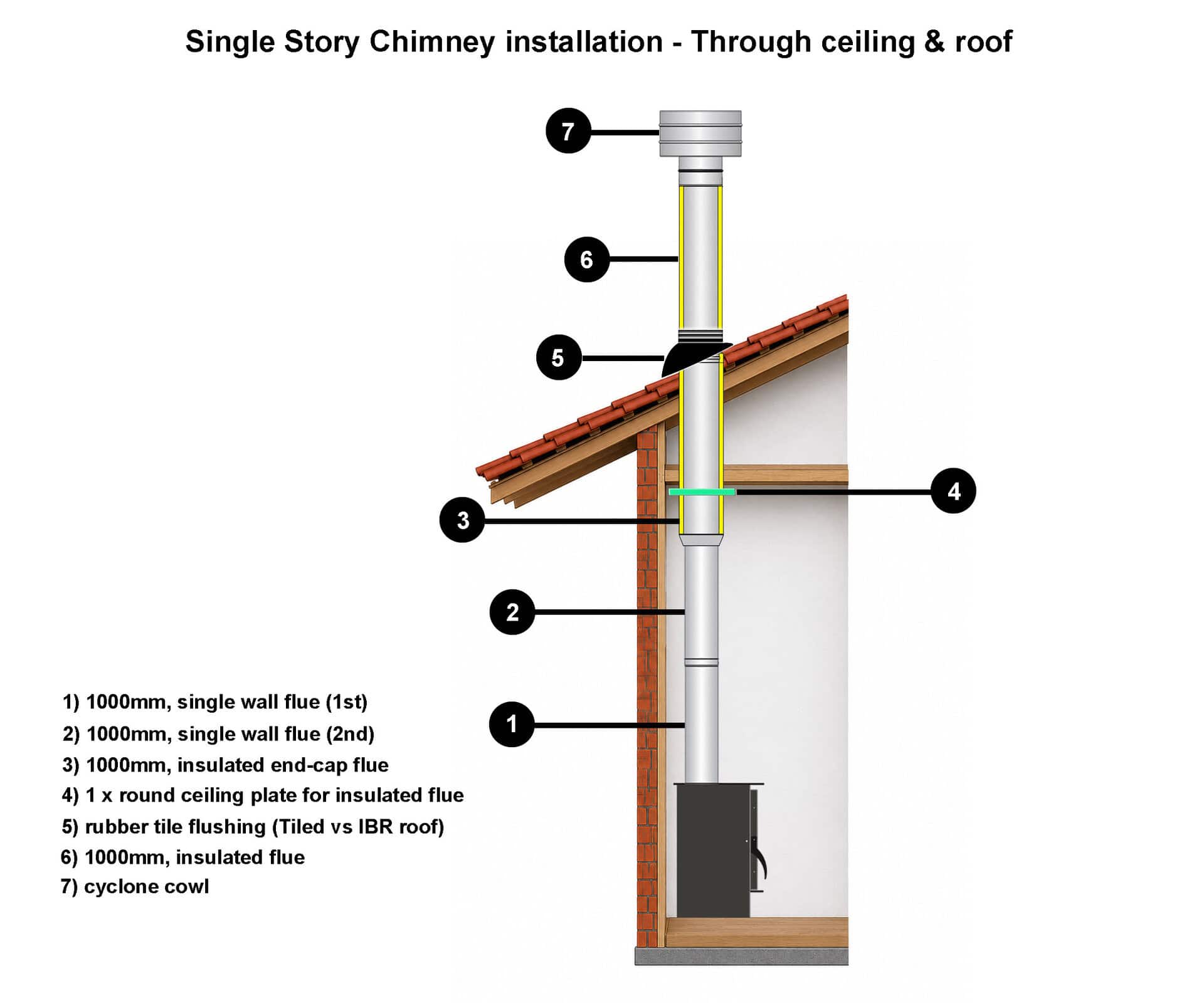

Designed for through-the-roof installations where the flue system runs vertically through the ceiling and roof.
Suitable for most single-story installations up to 4m in height.
Compatible with Lava’s Magma 10kW stoves and other Ø130mm closed combustion fireplaces.

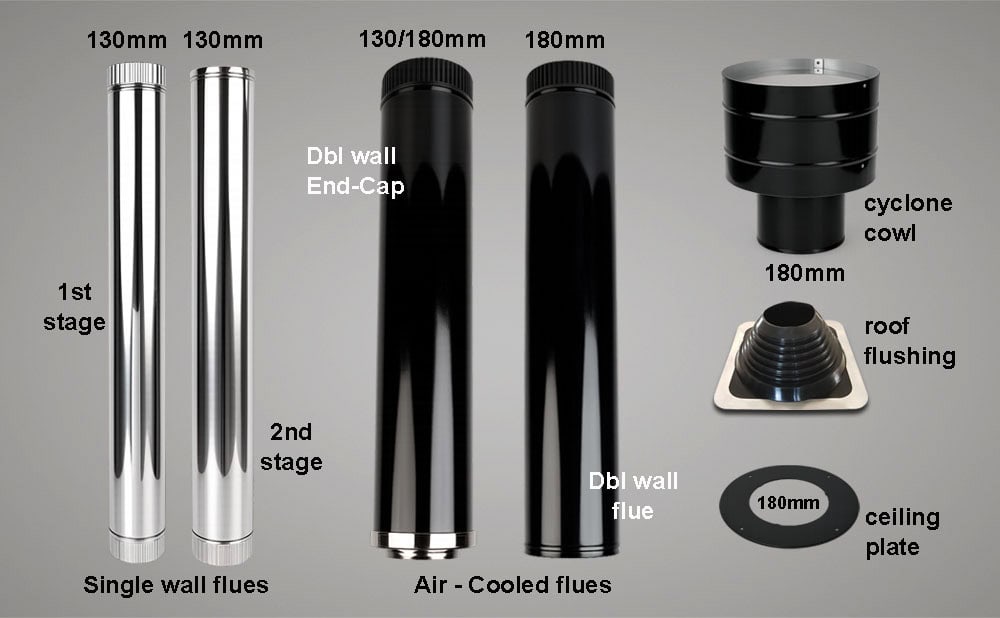

What’s Included
- 2m Single Flue
- 2m Air-Cooled Flue
- Rubber Roof Flashing
- Ceiling Plate
- Fixed cyclone cowl
- All required connection clamps
Superior Waterproofing
The included rubber roof flashing creates a watertight seal around the flue pipe, virtually eliminating the risk of roof leaks.
Why Air-Cooled Flues?
Lava Fires has transitioned from traditional insulated flues to air-cooled flues.
Used internationally for over 50 years, air-cooled flues provide excellent heat insulation, proven performance, and long-term reliability.
Specifications
| Specification | Details |
|---|---|
| Installation Type | Through-the-Roof |
| Application | Closed Combustion Fireplaces |
| Total Flue Height | 4m |
| Flue Diameter | Ø130mm |
| Flue Finish | Matt Black |
| Single Flue Length | 2m |
| Air-Cooled Flue Length | 2m |
| Inner Flue Material | 430 Grade Stainless Steel |
| Outer Sleeve Material | Galvanised Steel |
| Single Flue Air Gap | 10mm |
| Air-Cooled Flue Air Gap | 25mm |
| Waterproofing | Rubber Roof Flashing Included |
| Suitable For | Single-Story Homes |
